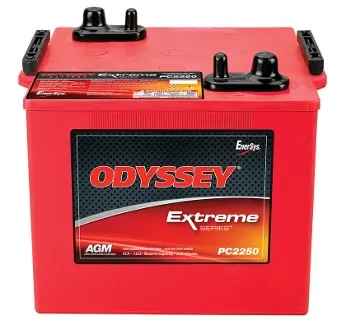

ENERSYS Odyssey Battery 12V 126Ah 1225CCA (286x269x233mm) (PC2250)
ODS-AGM6M (PC2250)
The ODS-AGM6M (PC2250) is a 12V Absorbed Glass Mat (AGM) battery from Odyssey's Extreme Series, designed for high-performance, dual-purpose use in applications like commercial vehicles, marine, and powersports. It features a rugged, vibration-resistant design and pure lead plates that offer more power and a longer lifespan (up to three times that of conventional batteries). Key specifications include a capacity of 126Ah, 1225 CCA, and 2250 PHCA, with a long reserve capacity of 240 minutes.

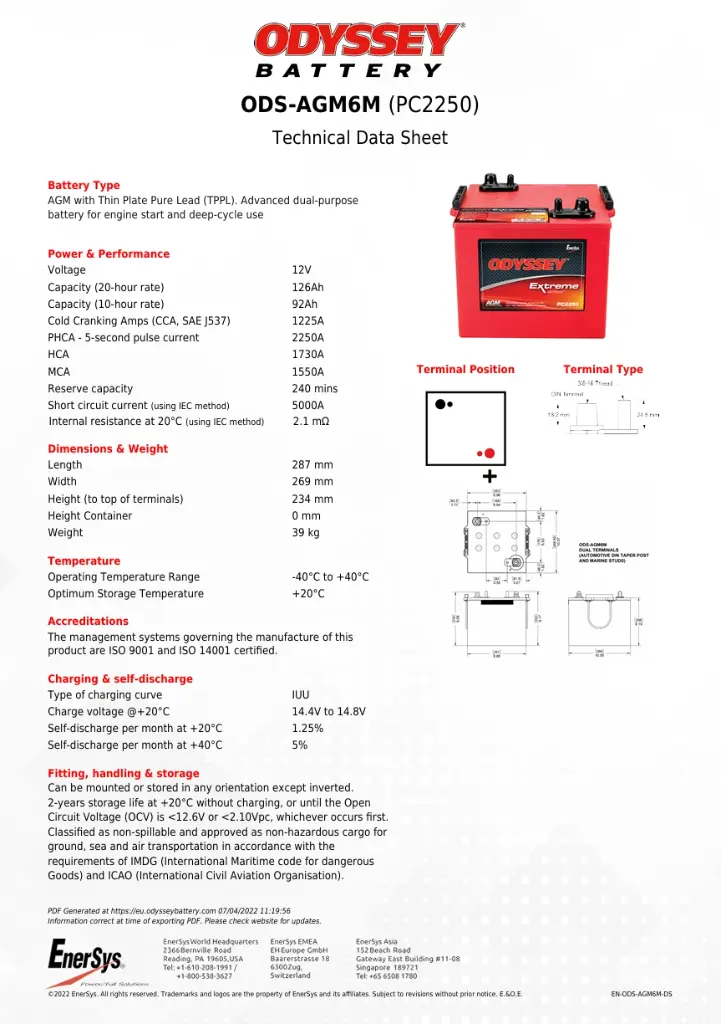

Key features and specifications
- Battery Type: Absorbed Glass Mat (AGM) with Thin Plate Pure Lead (TPPL) technology.
- Voltage: 12V.
- Capacity: 126Ah (20-hour rate).
- Power:
- CCA: 1225 Cold Cranking Amps (SAE).
- PHCA: 2250 Pulse Hot Cranking Amps (5 seconds).
- MCA: 1550 Marine Cranking Amps.
- HCA: 1730 Hot Cranking Amps.
- Reserve Capacity: 240 minutes.
- Design: Non-spillable, vibration-resistant, and can be mounted in any orientation except inverted.
- Construction: Made with pure lead plates, providing more surface area and durability.
- Dimensions: 287 mm (L) x 269 mm (W) x 234 mm (H).
- Weight: 39 kg.
- Operating Temperature: -40°C to +40°C (-40°F to 113°F).
| Manufacturer: Odyssey |
| Voltage: 12v |
| Amp Hours: 101-150 |
| Cold Cranking Amps: 1101 + |
| Usage: Dual |
